Temperatura e umidità regolabili
Ampio intervallo di tensioni
Temperatura operativa fino a -40°C
Elevata capacità di commutazione
Indicatore di stato (LED)

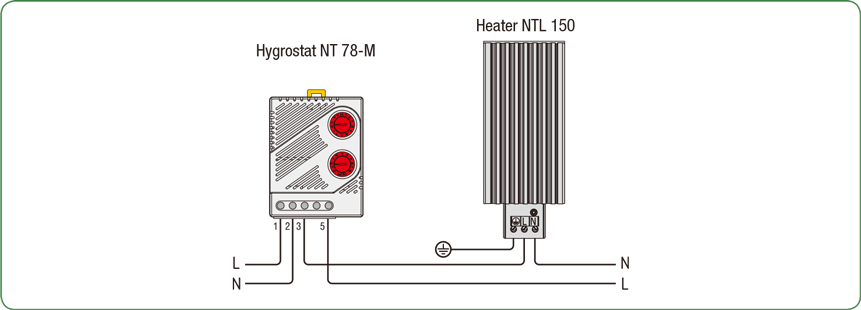

L'igrotermo elettronico rileva la temperatura ambiente e l'umidità relativa in un involucro con componenti elettrici/elettronici e accende un riscaldatore (o in alternativa un ventilatore) in entrambi i punti impostati, contribuendo a prevenire la formazione di condensa nell'involucro. Grazie al suo ampio intervallo di tensione, l'igrotermo può essere utilizzato ovunque nel mondo. Il LED integrato nella manopola di regolazione del controller attivo si accende quando il dispositivo collegato è in funzione.
Technical Data
NT 78-M | |
Switch difference | temperature: 2K (±1K tolerance) at +25℃ (+77℉), 50% RH humidity: 4% RH (±1% tolerance) at +25℃ (+77℉), 50% RH |
Reaction time (humidity) | approx. 5 sec. |
Contact type | change-over contact (relay) |
Service life VDE | NO/NC > 15,000 cycles; UL: NO/NC > 30,000 cycles |
Max. switching capacity (relay output) | 240VAC, 10(1.6) A / 120VAC, 15(1.6) A |
Max. inrush current | AC 30A for 10 sec. |
Optical indicator | LED |
Connection | 5-pole terminal, clamping torque 0.5Nm max.: rigid/stranded¹ wire 2.5mm² (AWG 14) |
Mounting | clip for 35mm DIN rail, EN 60715 |
Casing | plastic according to UL94 V-0, light grey |

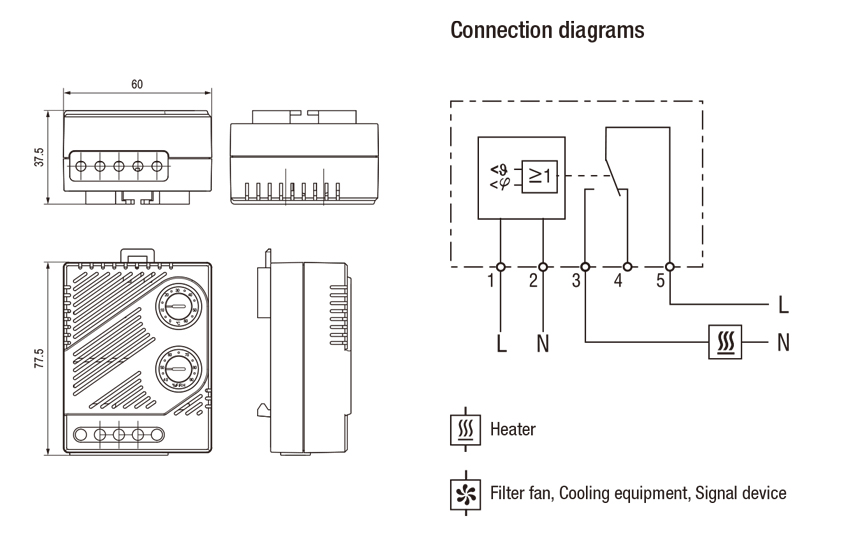

Dimensions | 77.5 x 60 x 37.5mm |
Weight | approx. 0.2kg |
Fitting position | vertical |
Operating/Storage temperature | -40 to +60℃ (-40 to +140℉) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type | IP20 |
¹ When connecting with stranded wires, wire end ferrules must be used.
Art. No. | Setting Range Temperature | Setting Range Humidity | Operating Voltage |
860666 | 0 to +60℃ | 50 to 90% RH | 230VAC, 50/60Hz |
860667 | +32 to 140℉ | 50 to 90% RH | 120VAC, 50/60Hz |
860668 | 0 to +60℃ | 50 to 90% RH | 120VAC, 50/60Hz |
